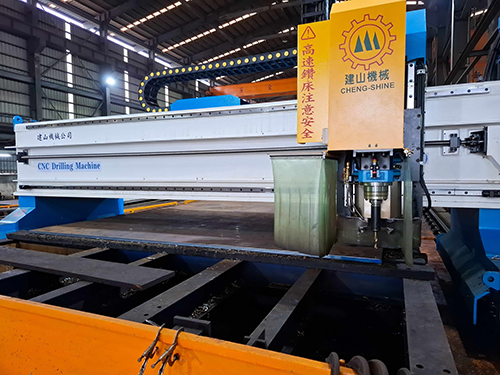

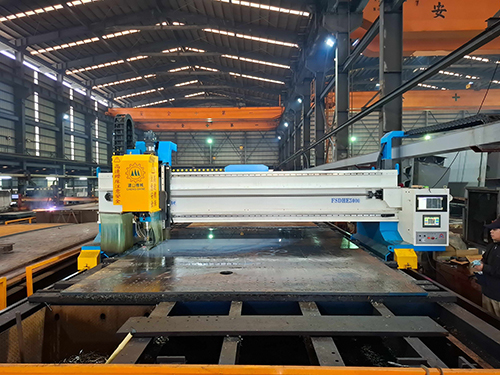

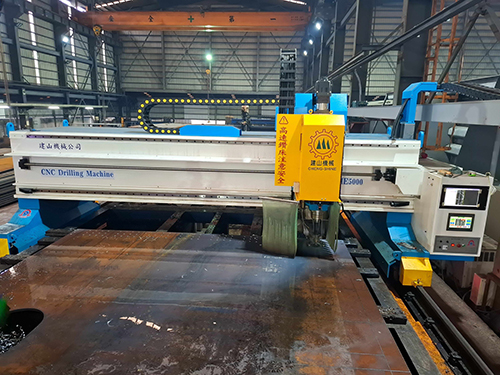

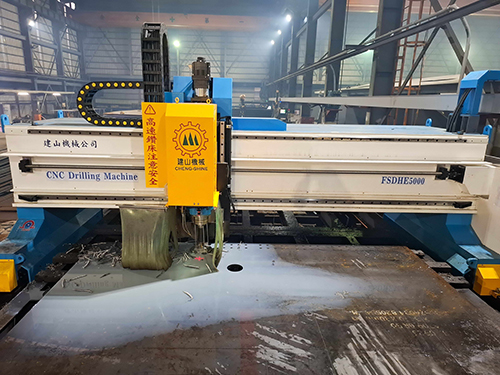

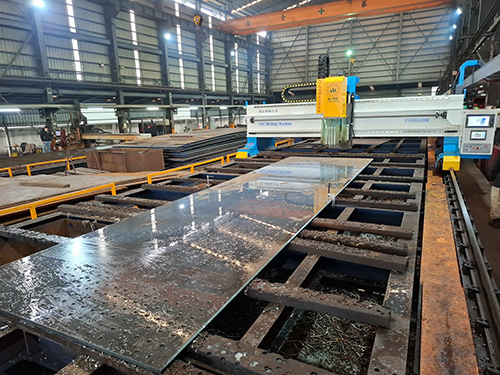

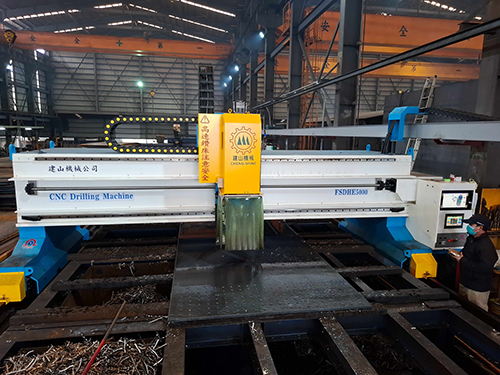

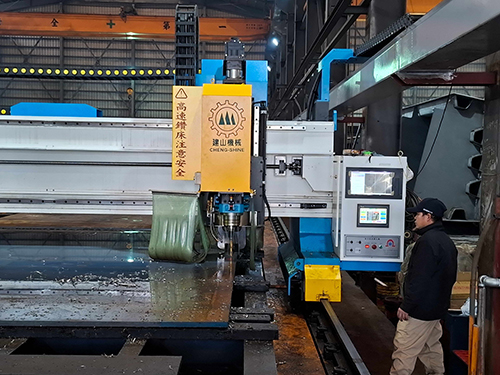

- High Speed Extendable Type - FSDHE Model
Product Specification
Track Width (mm --rail center to rail center) | 3000, 3500, 4000, ... 8000 | ||
---|---|---|---|
Effective Working Width (mm) | 2000, 2500, 3000, ... 7000 | ||
Rail Length (M) | 6, 9, 12, 15... No limits. Each rail section is 3M | ||
Effective Working Length (M) | 3, 6, 9, 12,... (Rail Length - 3M = Working Length) | ||
Drilling Max Thickness | 100 mm | ||
Drilling Hole Diameter | 50-100mm | ||
Variable RPM | 100-3000 RPM | ||
Number of Spindles (sets) | 1 or 2 | ||
Spindle Taper | BT 40, BT 50 | ||
Motor HP | 30 HP, 40 HP | ||
X-Axis | Ball Screw | ||
Y-Axis | Rack & Pinion | ||
Z-Axis (up/down) | AC Servo Motor | ||
Positioning Speed | 12000 mm/min | ||
Positioning Accuracy | 0.1 mm | ||
Repetitive Accuracy | 0.1 mm | ||
Cooling | Outside Cooling or Cooling Through Spindle (CTS) |
