Our Table type laser cutting CNC machine is easy to install and is compatible with laser power from 1kw to 6kw. The working area ranges from 1.5 x 3 meters to 2.5 x 6 meters. We use high-quality Germany gearbox rack and pinion and is installed with Precitec cutting head from Germany. This ensures high-quality cutting and accuracy for many years to come.

Inquiry

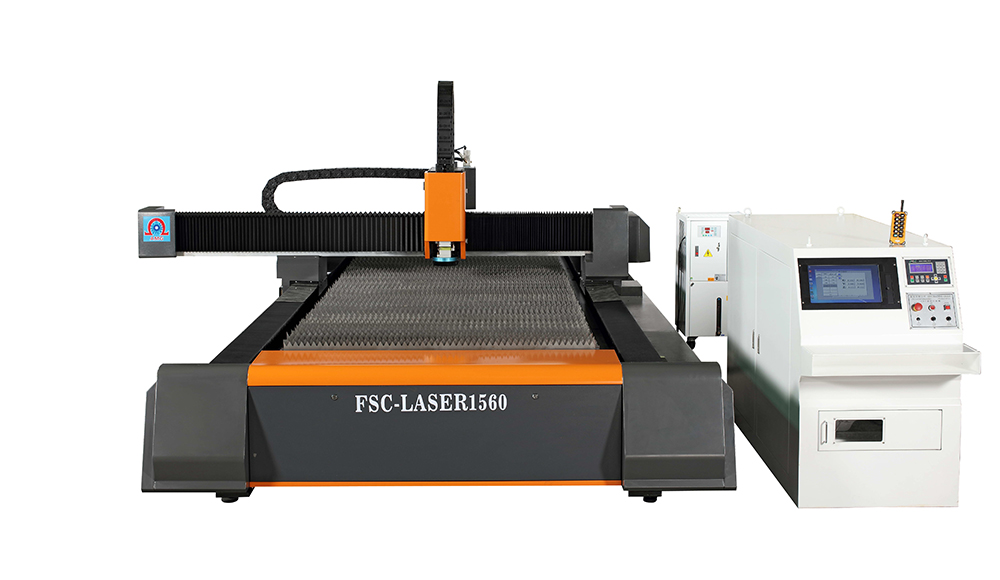

Table Type Laser Cutting CNC Machine
Video And Gallery
Table Type Laser Cutting CNC Machine
Video
Gantry Type Fiber Laser Cutting CNC Machine
Gallery
Product Specifications
Model FSC-Laser 1530 FSC-Laser 1560 FSC-Laser 2060 FSC-Laser 2560
Laser Power You can choose from IPG,MAX,or Raycus laser power sources based on your needs;
Laser power:3kw~30kw
Laser Cutting Head Can choose Precitec,Raytools laser cutting head brands according to needs.
Working Stroke(mm) X 1500 2000 2500
Y 3000 6000
Z 125-250 depending on different laser power sources
Positioning Speed (m/min) 100
Positioning Accuracy (mm) 0.03
Option Round Pipe/Round + Square Pipe Cutting
Option Bevel Cutting Function
